Oct-2023 Cisco 300-425 Actual Questions and 100% Cover Real Exam Questions [Q47-Q65]

NO.47 An engineer has successfully configured high availability and SSO using two Cisco 5508 Wireless LAN Controllers. The engineer can access the Active Primary WLC, but the Secondary Standby WLC is not accessible. Which two methods allow access to the standby unit? (Choose two.)

via the console connection

SSH to the redundancy management interface of the primary WLC

SSH to the service port interface

SSH to the virtual interface of the secondary WLC

SSH to the management interface of the primary WLC

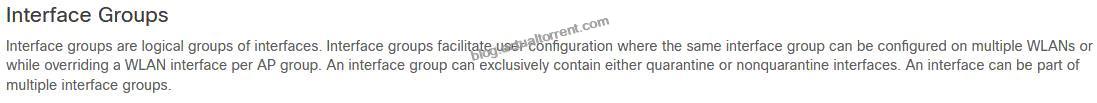

NO.48 An engineer is reducing the subnet size of the corporate WLAN by segmenting the VLAN into smaller subnets. Clients will be assigned a subnet by location. Which type of groups can the engineer use to map the smaller subnets to the corporate WLAN?

WLC port groups

RF groups

AP groups

interface groups

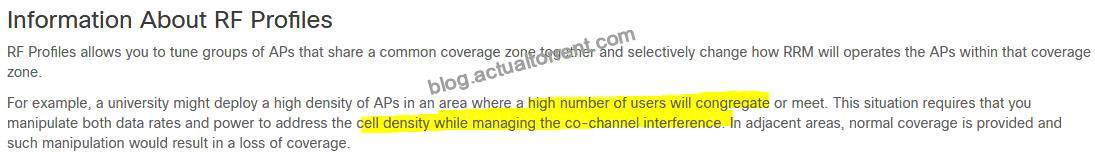

NO.49 An engineer has deployed a group of APs in an auditorium and notices that the APs are showing high cochannel interference. Which profile can be used to adjust the parameters for these high-density APs?

QoS profile

AVC profile

RF profile

ISE profile

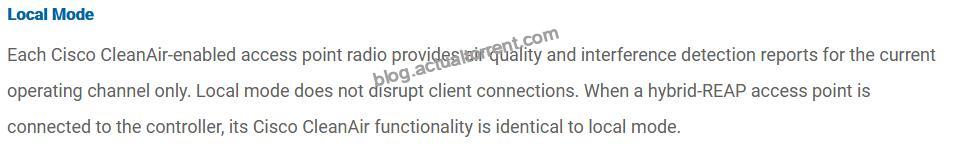

NO.50 An engineer performs a Layer 1 survey by using Metegeek chanalyzer only on the current operating channel. Which operating mode is configured for a Cisco CleanAIR AP?

Local

Sniffer

Monitor

SE-connect

NO.51 A network engineer is configuring high availability on an access point. What is the maximum number of controllers that can be configured?

1

2

3

4

NO.52 Which of the following statements best describes the purpose of ARP with respect to CEF?

ARP is used to build the FIB.

ARP is used to reindex the routing table.

ARP is used to build the adjacency table.

ARP is used to decrease the amount of time spent searching for an entry within a routing table.

Address Resolution Protocol (ARP) is used by Cisco Express Forwarding (CEF) to build the adjacency table.
CEF is the switching method used by Catalyst switches. Unlike traditional multilayer switching (MLS), which merely caches Layer 3 information received when traffic passes through a switch, CEF attempts to optimize the routing process by reindexing the routing table and then building an adjacency table based on the routing table information. The type of MLS performed by CEF is called topology-based switching; traditional MLS is known as route caching, demand-based switching, and flow-based switching.
The routing table is reindexed by using a binary search method. The reindexed routing table is called the forwarding information base (FIB). Reindexing the routing table reduces the amount of time spent searching for an entry within a routing table.
After the FIB is created, an adjacency table is created to map the appropriate Layer 2 next-hop address or addresses to each FIB entry. ARP is used to retrieve the Layer 2 address information. If multiple Layer 2 next- hop addresses are available for an entry in the FIB, then CEF can employ load balancing for packets headed to that destination.
The final result is a single database of routing information (FIB) is built for the switching hardware.
Two extremely useful commands for verifying CEF are:
show ip cef network address – displays entries in the forwarding information base (FIB) show adjacency detail | begin adjacency address – shows information about a specific adjacency in the adjacency table Both commands are shown below with explanations.
SwitchA# show ip cef 192.168.6.0
192.168.6.0/24, version 302, cached adjacency 192.168.166.5, 0 packets, 0 bytes Via 192.168.166.5, VLAN 185, 0 dependencies Next-hop 192.168.166.5, VLAN 185 Valid cached adjacency Above it can be determined that there is a valid CEF entry for the destination network 192.168.6.0 and that there is a valid cached adjacency to the 192.168.166.5 next hop IP address.
In the command output below, it can be determined that 005565946856 is the MAC address of the
192.168.166.5 next-hop address:
SwitchA# show adjacency detail | begin 192.168.166.5
IP VLAN 185 192.168.166.5(6) 0 packets, 0 bytes
005565946856
Objective:
Layer 2 Technologies
Sub-Objective:
Configure and verify switch administration
References:
Cisco > Cisco IOS IP Switching Configuration Guide, Release 12.4 > Part 1: Cisco Express Forwarding > Cisco Express Forwarding Overview > Cisco Express Forwarding Adjacency Tables Overview Cisco > Cisco IOS IP Switching Command Reference > show adjacency through show ipv6 cef with source > show adjacency Cisco > Cisco IOS IP Switching Command Reference > show adjacency through show ipv6 cef with source > show ip cef

NO.53 Clustering Cisco WLCs into a single RF group enables the RRM algorithms to scale beyond the capabilities of a single Cisco WLC. How many WLC and APs in an RF group can the controller software scale up to in WLC release 8.9 depending on the platform?

up to 20 WLCs and 1000 APs

up to 20 WLCs and 3000 APs

up to 20 WLCs and 4000 APs

up to 20 WLCs and 6000 APs

NO.54 What is the attenuation value of a human body on a wireless signal?

3 dB

4 dB

6 dB

12 dB

NO.55 An engineer has designed an anchor redundancy for guest clients connecting to SSID with auto-anchor configured. After adding a second Anchor WLC under the SSID mobility anchor list, clients are load-balanced between existing and new anchors instead of having one anchor as active and the other one as standby. Which feature should be included in the design that will be configured on the WLC running
8.1 or above to ensure anchor redundancy?

Auto-Anchor Foreign Mapping

AP groups

Guest Anchor Priority

802.11r

NO.56 A customer is looking for a network design with Cisco Hyperlocation using AP4800 for location tracking via a custom mobile app issues appeared in me past with refresh rates for location updates What needs to be implemented to meet these requirements?

Cisco FastLocate technology

redundant CMX and fetch location in round-robin fashion

device Bluetooth via the app

Cisco CMX SDK in the location app

NO.57 A customer is concerned about mesh backhaul link security. Which level of encryption does the backhaul link use?

hash

AES

WEP

3DES

NO.58 An engineer is designing an outdoor mesh network to cover several sports fields. The core of the network is located in a building at the entrance of a sports complex. Which type of antenna should be used with the RAP for backhaul connectivity?

5 GHz. 8-dBi omnidirectional antenna

2.4 GHz. 8-dBi patch antenna

2.4 GHz. 14-dBi omnidirectional antenna

5 GHz. 14-DBi patch antenna

NO.59 Which non-Wi-Fi interferer can be identified by Metageek Chanalyzer?

PDAs

jammers

smartphones

printers

NO.60 Refer to the exhibit. An enterprise is using wireless as the main network connectivity for clients. To ensure service continuity. a pair of controllers will be installed in a datacentre. An engineer is designing SSO on the pair of controllers. What needs to be included in the design to avoid having the secondary controller go into maintenance mode?

The Keep alive timer is too low. which causes synchronization problems.

The connection between the redundancy ports is missing.

The redundancy port must be the same subnet as the redundancy mgmt.

The Global Configuration of SSO is set to Disabled on the controller.

NO.61 An engineer must ensure that the wireless network can accomplish fast secure roaming by way of caching keys on the access points. Which key caching mechanism is enabled by default on a Cisco AireOS WLC?

SKC

OKC

802.11r

CCKM

NO.62 An engineer must decide the cell overlap for a wireless voice deployment. Which Cisco measurement recommendation should be considered?

The edge of the cell should be -67 dBm.

The edge of the cell should be below 35 RSSI.

The measurement should be done on the 2.4-GHz band.

One AP should be deployed per 3000 square feet.

NO.63 A network engineer is working on a predictive WLAN design. The new wireless network must support access to internet, email, voice, and the inventory database To successfully support these services, which configuration must the engineer use for the signal strength levels and SNR on the planning tool?

signal strength of 67 dBm. 20-dB SNR and maximum 1 percent packet loss

signal strength of -67 dBm. 20-dB SNR. and maximum 5 percent packet loss

signal strength of -67 dBm. 25-dB SNR. and maximum 1 percent packet loss

signal strength of -70 dBm. 30-dB SNR. and maximum 10 percent packet loss

NO.64 You made changes to a VLAN, but the changes were not propagated to the other switches in the VTP domain.

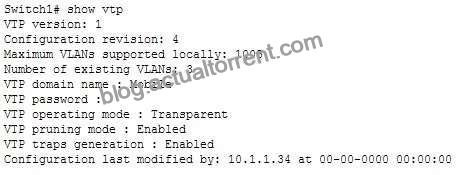

You enter a show vtp command at the switch where the changes were made, which displays the following output:

What should you do to solve this problem?

Disable VTP pruning.

Change the VTP operating mode to server.

Upgrade the VTP version to version 2.

Upgrade the VTP version to version 3.

NO.65 Which statement about the 9800 Series Wireless Controller mobility tunnel on a Cisco Catalyst 9800 controller is true?

It is an IPsec tunnel with control path only.

It is a CAPWAP tunnel with data path only.

It is a CAPWAP tunnel with control path and data path.

It is an IPsec tunnel with control path and data path.
