Out-of-band management
When a Cisco switch is not accessible from the network, the recommended out-of-band method to access its running configuration is through theconsole port. Out-of-band management involves accessing the network device through a dedicated management channel that is not part of the data network.The console port provides direct access to the switch’s Command Line Interface (CLI) without using the network, which is essential when the switch cannot be accessed remotely via the network12.
References:=
* Out-of-band (OOB) network interface configuration guidelines
* Out of band management configuration
If you have any more questions or need further assistance, feel free to ask!

Explanation:

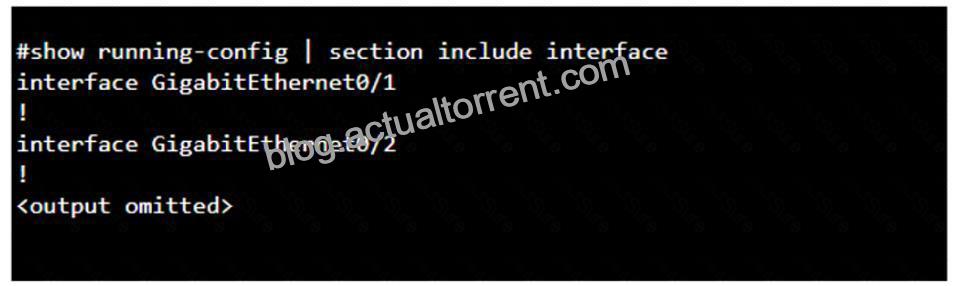

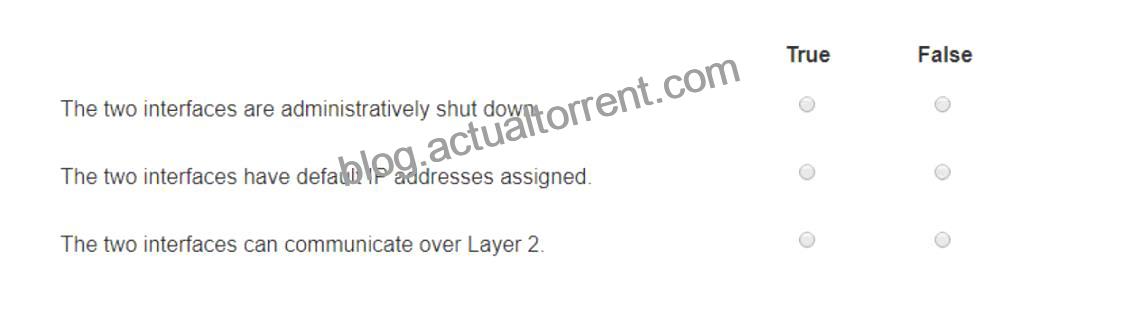

* The two interfaces are administratively shut down:
* False: The output does not show any “shutdown” command under the interfaces, which would indicate that they are administratively shut down. Therefore, they are likely in their default state, which is administratively up.
* The two interfaces have default IP addresses assigned:
* False: The output does not show any IP address configuration. In the default state, interfaces do not have IP addresses assigned unless explicitly configured.
* The two interfaces can communicate over Layer 2:
* True: By default, interfaces on a switch are Layer 2 interfaces capable of forwarding Ethernet frames. As there is no configuration provided that changes this, it can be assumed they can communicate over Layer 2.
* Interface Status: The absence of the “shutdown” command means the interfaces are not administratively shut down.
* IP Address Assignment: There is no evidence in the output that IP addresses have been assigned to the interfaces, which would typically be shown as “ip address” entries.
* Layer 2 Communication: Switch interfaces in their default state operate at Layer 2, enabling them to forward Ethernet frames and participate in Layer 2 communication.
References:
* Cisco IOS Interface Configuration: Cisco Interface Configuration
* Understanding Cisco Switch Interfaces: Cisco Switch Interfaces

Explanation:

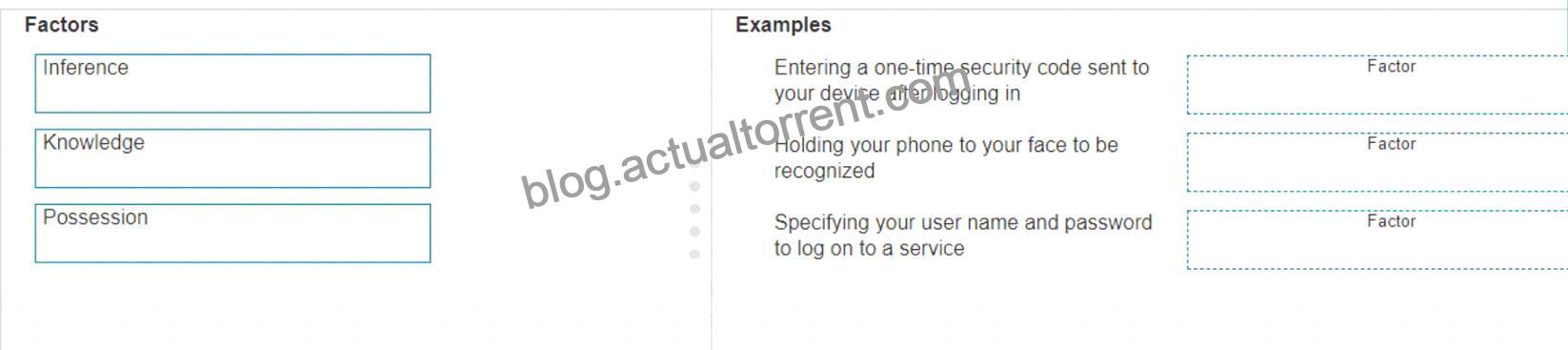

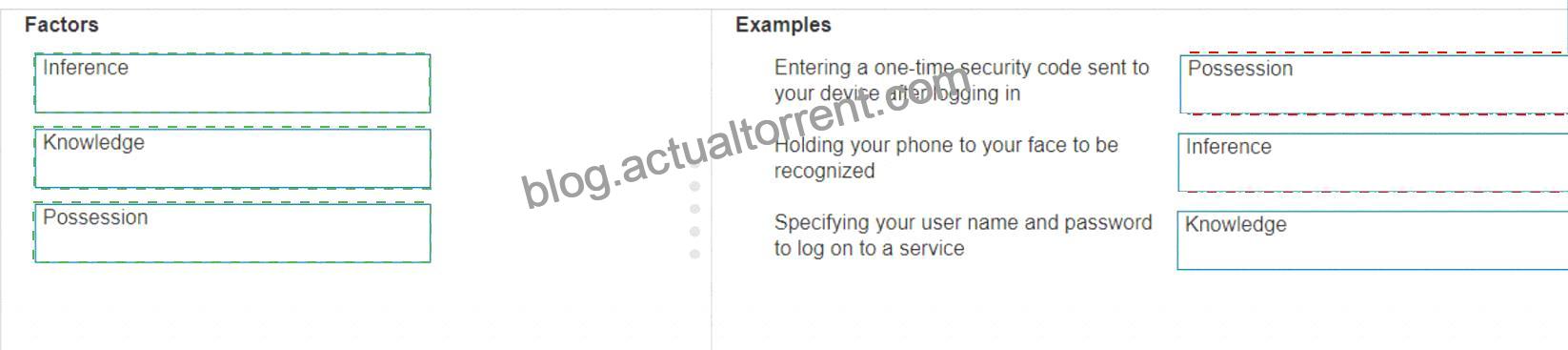

The correct matching of the MFA factors to their examples is as follows:
* Entering a one-time security code sent to your device after logging in: Possession
* Holding your phone to your face to be recognized: Inherence
* Specifying your user name and password to log on to a service: Knowledge Here’s why each factor matches the example:
* Possession: This factor is something the user has, like a mobile device. A one-time security code sent to this device falls under this category.
* Inherence: This factor is something the user is, such as a biometric characteristic. Facial recognition using a phone is an example of this factor.
* Knowledge: This factor is something the user knows, like a password or PIN.
Multi-Factor Authentication (MFA) enhances security by requiring two or more of these factors to verify a user’s identity before granting access.
* Entering a one-time security code sent to your device after logging in.
* Factor: Possession
* Explanation: This factor relates to something you have, such as a device that receives a security code.
* Holding your phone to your face to be recognized.
* Factor: Inference (typically referred to as Inherence or Biometric)
* Explanation: This factor relates to something you are, such as biometric authentication like facial recognition.
* Specifying your username and password to log on to a service.
* Factor: Knowledge
* Explanation: This factor relates to something you know, such as a username and password.
* Possession Factor: This involves something the user has in their possession. Receiving a one-time security code on a device (e.g., phone) is an example of this.
* Inference Factor (Inherence/Biometric): This involves something inherent to the user, such as biometric verification (e.g., facial recognition or fingerprint scanning).
* Knowledge Factor: This involves something the user knows, such as login credentials (username and password).
References:
* Multi-Factor Authentication (MFA) Explained: MFA Guide
* Understanding Authentication Factors: Authentication Factors

The private IP address ranges that are set aside specifically for use within private networks and not routable on the internet are as follows:
* Class A: 10.0.0.0 to 10.255.255.255
* Class B: 172.16.0.0 to 172.31.255.255
* Class C: 192.168.0.0 to 192.168.255.255
These ranges are defined by the Internet Assigned Numbers Authority (IANA) and are used for local communications within a private network123.
Given the options: A.172.16.0.0 to 172.31.255.255falls within the Class B private range. B.192.16.0.0 to
192.16.255.255is not a recognized private IP range. C.11.0.0.0 to 11.255.255.255is not a recognized private IP range. D.192.168.0.0 to 192.168.255.255falls within the Class C private range.
Therefore, the correct selections that the company should use for their private networks areAandD.
References:=
* Reserved IP addresses on Wikipedia
* Private IP Addresses in Networking – GeeksforGeeks
* Understanding Private IP Ranges, Uses, Benefits, and Warnings

To store files that will be accessible by every user on a network, you would need aserver. A server is a computer system that provides data to other computers. It can serve data to systems on a local network (LAN) or a wide network (WAN) over the internet.In this context, a file server would be set up to store and manage files, allowing users on the network to access them from their own devices1.
References:=
* What is a Server?
* Understanding Servers and Their Functions
A server is a computer designed to process requests and deliver data to other computers over a local network or the internet. In this case, to store files that will be accessible by every user on the network, a file server is the appropriate endpoint device. It provides a centralized location for storing and managing files, allowing users to access and share files easily.
* A. Access point: Provides wireless connectivity to a network.
* C. Hub: A basic networking device that connects multiple Ethernet devices together, making them act as a single network segment.
* D. Switch: A networking device that connects devices on a computer network by using packet switching to forward data to the destination device.
Thus, the correct answer is B. Server.
References:=
* File Server Overview (Cisco)
* Server Roles in Networking (Cisco)

Explanation:

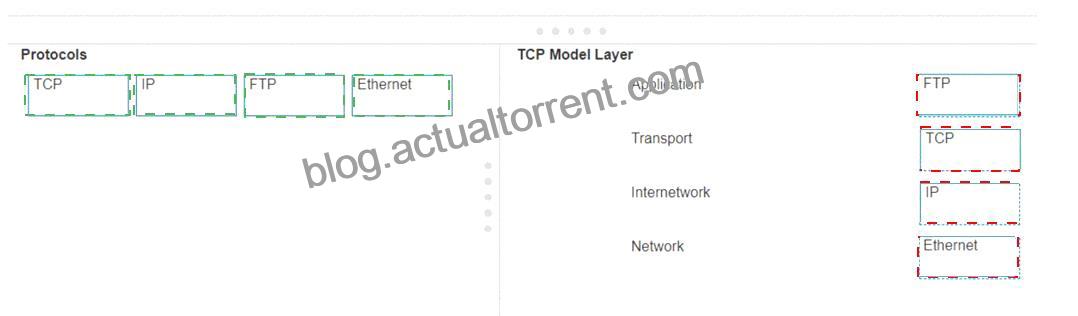

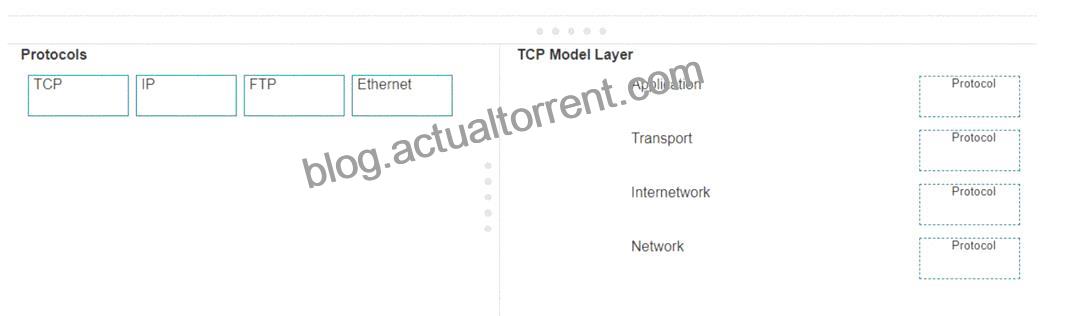

Here’s how each protocol aligns with the correct TCP/IP model layer:
* TCP (Transmission Control Protocol): This protocol belongs to theTransportlayer, which is responsible for providing communication between applications on different hosts1.
* IP (Internet Protocol): IP is part of theInternetworklayer, which is tasked with routing packets across network boundaries to their destination1.
* FTP (File Transfer Protocol): FTP operates at theApplicationlayer, which supports application and end-user processes.It is used for transferring files over the network1.
* Ethernet: While not a protocol within the TCP/IP stack, Ethernet is associated with theNetwork Interfacelayer, which corresponds to the link layer of the TCP/IP model and is responsible for the physical transmission of data1.
The TCP/IP model layers are designed to work collaboratively to transmit data from one layer to another, with each layer having specific protocols that perform functions necessary for the data transmission process1.
* TCP:
* TCP Model Layer: Transport
* Explanation: The Transport layer is responsible for end-to-end communication and error handling. TCP (Transmission Control Protocol) operates at this layer to provide reliable, ordered, and error-checked delivery of data.
* IP:
* TCP Model Layer: Internetwork
* Explanation: The Internetwork layer, also known as the Internet layer, is responsible for logical addressing and routing. IP (Internet Protocol) operates at this layer to route packets across networks.
* FTP:
* TCP Model Layer: Application
* Explanation: The Application layer provides network services to applications. FTP (File Transfer Protocol) operates at this layer to transfer files between computers over a network.
* Ethernet:
* TCP Model Layer: Network
* Explanation: The Network layer, also known as the Link layer in the TCP/IP model, is responsible for physical addressing and access to the physical medium. Ethernet operates at this layer to provide the physical and data link functions.
* Transport Layer: This layer is responsible for providing communication services directly to the application processes running on different hosts. TCP is a core protocol in this layer.
* Internetwork Layer: This layer is responsible for logical addressing, routing, and packet forwarding.
IP is the primary protocol for this layer.
* Application Layer: This layer interfaces directly with application processes and provides common network services. FTP is an example of a protocol operating in this layer.
* Network Layer: In the TCP/IP model, this layer includes both the data link and physical layers of the OSI model. Ethernet is a protocol used in this layer to define network standards and communication protocols at the data link and physical levels.
References:
* TCP/IP Model Overview: Cisco TCP/IP Model
* Understanding the TCP/IP Model: TCP/IP Layers

*1000BASE-T Cable: This refers to Gigabit Ethernet over twisted-pair cables (Cat 5e or higher).
*Connector: RJ-45 connectors are used for Ethernet cables, including those used for 1000BASE-T.
*Coax: Used for cable TV and older Ethernet standards like 10BASE2.
*RJ-11: Used for telephone connections.
*OS2 LC: Used for fiber optic connections.
References:
*Ethernet Standards and Cables: Ethernet Cable Guide

SFTP, or Secure File Transfer Protocol, is a protocol that allows for secure file transfer capabilities between networked hosts. It is a secure extension of the File Transfer Protocol (FTP). SFTP encrypts both commands and data, preventing passwords and sensitive information from being transmitted openly over the network. It is typically used for secure file transfers over the internet and is built on the Secure Shell (SSH) protocol1.
References :=
*What Is SFTP? (Secure File Transfer Protocol)
*How to Use SFTP to Safely Transfer Files: A Step-by-Step Guide
*Secure File Transfers: Best Practices, Protocols And Tools
The Secure File Transfer Protocol (SFTP) is a secure version of the File Transfer Protocol (FTP) that uses SSH (Secure Shell) to encrypt all commands and data. This ensures that sensitive information, such as usernames, passwords, and files being transferred, are securely transmitted over the network.
*ICMP (Internet Control Message Protocol) is used for network diagnostics and is not designed for file transfer.
*NTP (Network Time Protocol) is used to synchronize clocks between computer systems and is not related to file transfer.
*HTTP (HyperText Transfer Protocol) is used for transmitting web pages over the internet and does not inherently provide secure file transfer capabilities.
Thus, the correct protocol that allows secure uploading of files to another computer on the internet is SFTP.
References :=
*Cisco Learning Network
*SFTP Overview (Cisco)

The primary purpose of assigning an IP address to the management VLAN interface on a Layer 2 switch is to facilitate remote management of the switch. By configuring an IP address on the management VLAN, network administrators can access the switch’s Command Line Interface (CLI) remotely using protocols such as Telnet or Secure Shell (SSH). This allows for convenient configuration changes, monitoring, and troubleshooting without needing physical access to the switch1.
References :=
*Understanding the Management VLAN
*Cisco – VLAN Configuration Guide
*Remote Management of Switches
Assigning an IP address to the management VLAN interface (often the VLAN 1 interface by default) on a Layer 2 switch allows network administrators to remotely manage the switch using protocols such as Telnet or SSH. This IP address does not affect the switch’s ability to route traffic between VLANs but provides a means to access and configure the switch through its Command Line Interface (CLI).
*A: The switch does not act as a default gateway; this is typically a function of a Layer 3 device like a router.
*B: The switch does not resolve URLs; this is typically a function of DNS servers.
*C: The switch can relay DHCP requests but does not typically provide DHCP services itself; this is usually done by a dedicated DHCP server or router.
Thus, the correct answer is D. To enable access to the CLI on the switch through Telnet or SSH.
References :=
*Cisco VLAN Management Overview
*Cisco Catalyst Switch Management

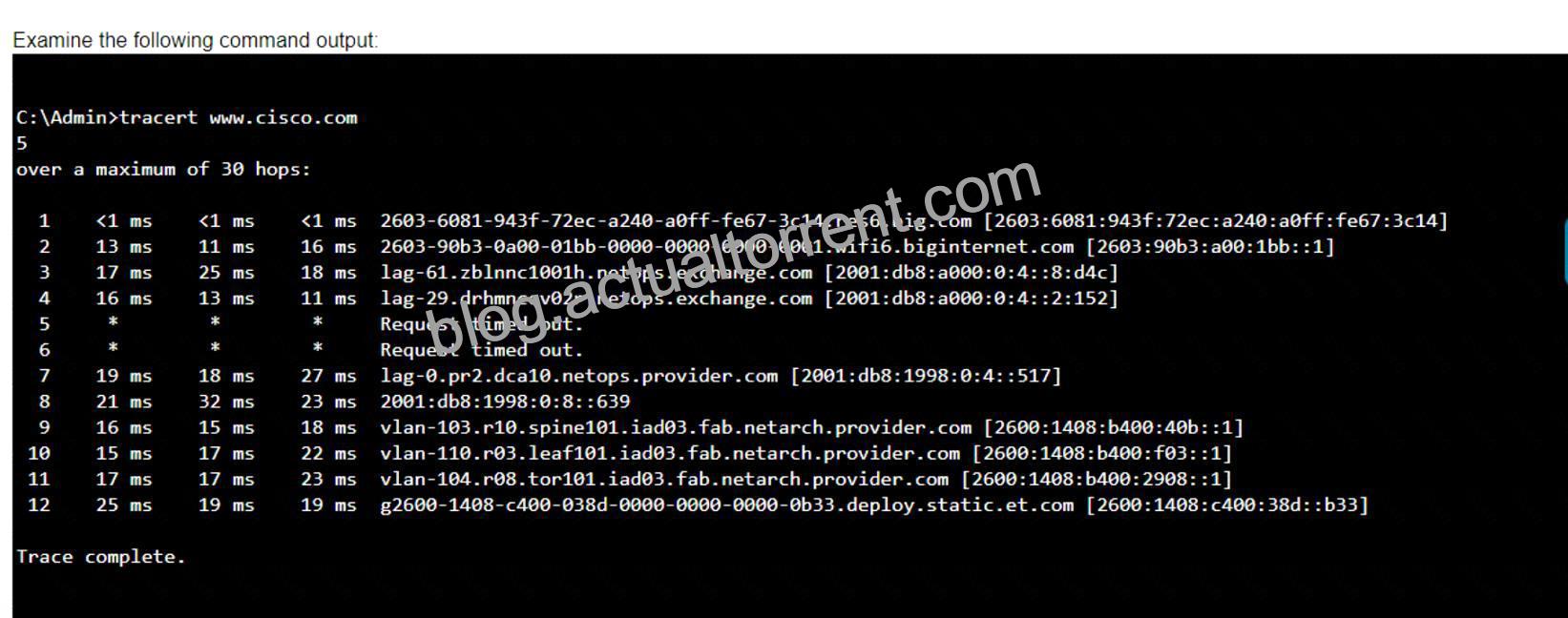

*Statement A: “The trace successfully reached the www.cisco.com server.” This is true as indicated by the
“Trace complete” message at the end, showing that the trace has reached its destination.
*Statement C: “The IPv6 address associated with the www.cisco.com server is 2600:1408:c400:38d::b33.” This is true because the final hop in the trace, which is the destination, has this IPv6 address.
*Statement B: “The trace failed after the fourth hop.” This is incorrect as the trace continues beyond the fourth hop, despite some intermediate timeouts.
*Statement D: “The routers at hops 5 and 6 are offline.” This is not necessarily true. The routers might be configured to not respond to traceroute requests.
*Statement E: “The device sending the trace has IPv6 address 2600:1408:c400:38d::b33.” This is incorrect; this address belongs to the destination server, not the sender.
References:
*Understanding Traceroute: Traceroute Guide

When prioritizing trouble tickets, the most critical issues affecting business operations or high-impact activities should be addressed first. Here’s a breakdown of the tickets:
* Ticket 1: Relocation of a printer, while necessary, is not urgent and does not impact critical operations.
* Ticket 2: An ongoing webinar losing internet access is critical, especially if the webinar is time-sensitive and involves multiple participants.
* Ticket 3: Slower response time for a cloud-based application is important but typically not as urgent as a complete loss of internet access for a live event.
* Ticket 4: Wireless access down in the cafeteria affects users but does not have the same immediate impact as a live webinar losing connectivity.
Thus, the correct answer is B. Ticket 2: An online webinar is taking place in the conference room. The video conferencing equipment lost internet access.
References:=
* IT Help Desk Best Practices
* Prioritizing IT Support Tickets

Explanation:

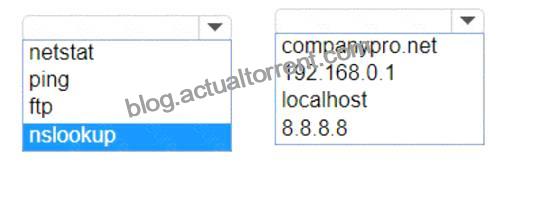

To determine if you can reach the router, you should use thepingcommand followed by the IP address of the router. Thepingcommand is a network utility used to test the reachability of a host on an Internet Protocol (IP) network and to measure the round-trip time for messages sent from the originating host to a destination computer.

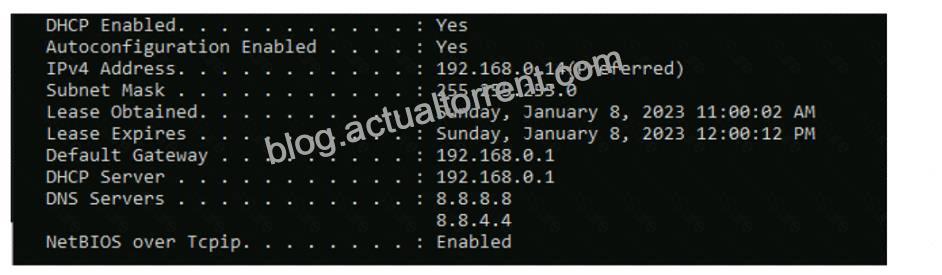

The Default Gateway in theipconfigresults is typically the router’s IP address in a home or small office network. In this case, the Default Gateway is192.168.0.1, which is the address you would ping to check connectivity to the router.
References:=
* How to Use the Ping Command
* Testing Network Connectivity with the Ping Command

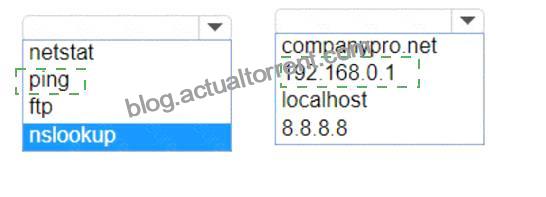

To determine if you can reach the router, you should use thepingcommand with the IP address of the router.
* Command:ping
* Target:192.168.0.1
So, the completed command is:
* ping 192.168.0.1
Step by Step Comprehensive and Detailed Explanation:
* ping: The ping command sends ICMP Echo Request messages to the target IP address and waits for an Echo Reply. It is commonly used to test the reachability of a network device.
* 192.168.0.1: This is the IP address of the default gateway (the router) as shown in theipconfigoutput.
Pinging this address will help determine if the computer can communicate with the router.
References:
* Using the ping Command: ping Command Guide

IPv6 addresses can be compressed by removing leading zeros and replacing consecutive groups of zeros with a double colon (::). Here’s how to compress the address 2001:0db8:0000:0016:0000:001b:2000:0056:
* Remove leading zeros from each segment:
* 2001:db8:0000:0016:0000:001b:2000:0056 becomes 2001:db8:0:16:0:1b:2000:56
* Replace the longest sequence of consecutive zeros with a double colon (::). In this case, the two consecutive zeros between the 16 and 1b:
* 2001:db8:0:16::1b:2000:56
Thus, the most compressed valid format of the IPv6 address is 2001:db8:0:16::1b:2000:56.
References:=
* Cisco Learning Network
* IPv6 Addressing (Cisco)

The header of a UDP (User Datagram Protocol) segment includesport numbers. Specifically, it contains the source port number and the destination port number, which are used to identify the sending and receiving applications. UDP headers do not include IP addresses or MAC addresses, as those are part of the IP and Ethernet frame headers, respectively.Additionally, UDP does not use sequence numbers, which are a feature of TCP (Transmission Control Protocol) for ensuring reliable delivery of data segments1.
References:=
* Segmentation Explained with TCP and UDP Header
* User Datagram Protocol (UDP) – GeeksforGeeks
* Which three fields are used in a UDP segment header
* UDP Header: The header of a UDP segment includes the following key fields:
* Source Port: The port number of the sending application.
* Destination Port: The port number of the receiving application.
* Length: The length of the UDP header and data.
* Checksum: Used for error-checking the header and data.
* IP Addresses: These are included in the IP header, not the UDP header.
* Sequence Numbers: These are part of the TCP header, not UDP.
* MAC Addresses: These are part of the Ethernet frame header and are not included in the UDP header.
References:
* RFC 768 – User Datagram Protocol: RFC 768
* Cisco Guide on UDP: Cisco UDP Guide

The IEEE 802.11 standard contains the specifications for Wi-Fi networks. It is a set of media access control (MAC) and physical layer (PHY) specifications for implementing wireless local area network (WLAN) computer communication in various frequencies, including but not limited to 2.4 GHz, 5 GHz, and 6 GHz1.
This standard is maintained by the Institute of Electrical and Electronics Engineers (IEEE) and is commonly referred to as Wi-Fi. The standard has evolved over time to include several amendments that improve speed, range, and reliability of wireless networks.
References :=
*The Most Common Wi-Fi Standards and Types, Explained
*802.11 Standards Explained: 802.11ax, 802.11ac, 802.11b/g/n, 802.11a
*Wi-Fi Standards Explained – GeeksforGeeks
