2024 Updated Verified HPE6-A72 Q&As – Pass Guarantee or Full Refund [Q28-Q52]

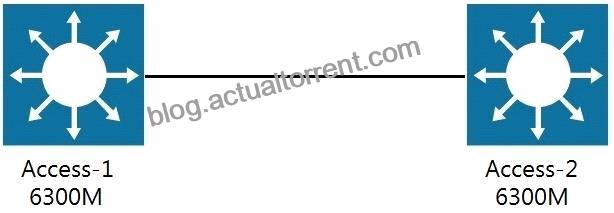

NO.28 Refer to the exhibit.

You are in the process of configuring VSF between Access-1 and Access-2. Access-1 has been configured as the VSF Master.
What is a valid configuration for Access-2 to join the VSF stack?

Access-2# configure
Access-2(config)# vsf member 1 Access-2(config)# vsf renumber-to 2 Access-2(vsf-member-1)# link 2 2/1/28 Access-2(vsf-member-1)# exit This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y

Access-2# configure
Access-2(config)# vsf member 2 Access-2(vsf-member-1)# link 2 1/1/28 Access-2(vsf-member-1)# exit This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y

Access-2# configure
Access-2(config)# vsf member 2 Access-2(vsf-member-1)# link 1 1/1/28 Access-2(vsf-member-1)# exit This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y

Access-2# configure
Access-2(config)# vsf member 1 Access-2(vsf-member-1)# link 1 1/1/28 Access-2(vsf-member-1)# exit Access-2(config)# vsf renumber-to 2 This will save the VSF configuration and reboot the switch. Do you want to continue (y/n)? y

NO.29 What are two OSPF attributes within the hello messages that must match to successfully establish neighbor relationships? (Choose two.)

Router ID

Priority

Hello and Dead intervals

Area ID

Process ID

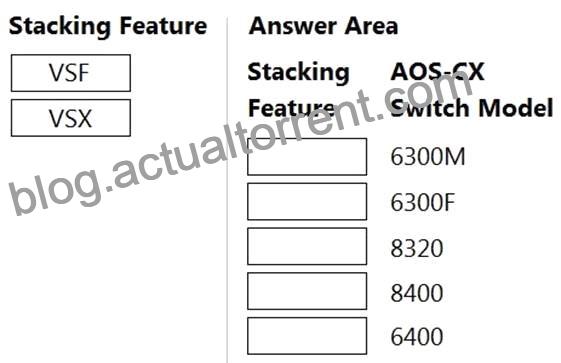

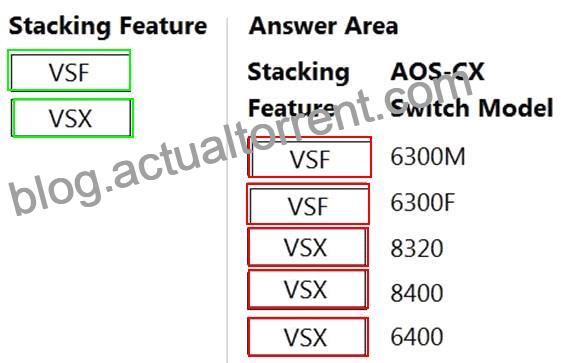

NO.30 Match the available stacking feature to the correct AOS-CX switch model. Stacking features may be used more than once.

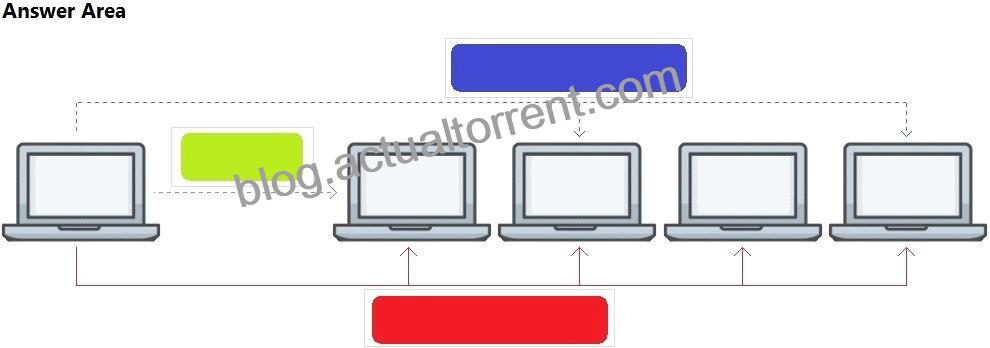

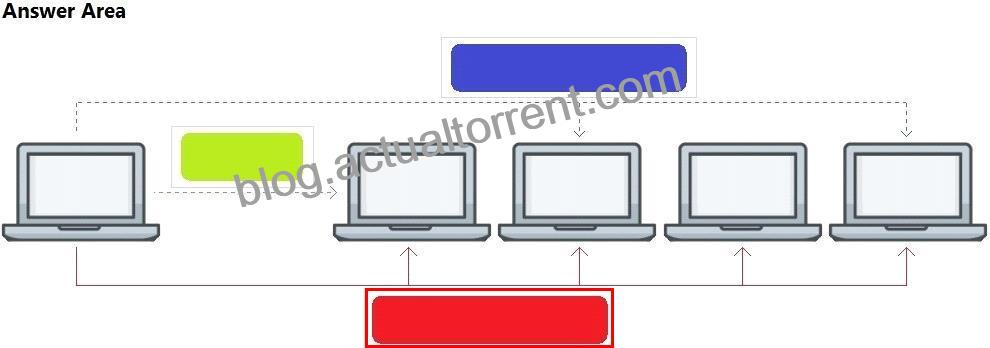

NO.31 Click on the colored box that corresponds with the line that best represents Broadcast traffic flow.

NO.32 Which two options are correct regarding the IEEE 802.11ax standard? (Choose two.)

allows transmissions of up to 4.8Gbps

is an emerging satellite connection standard to allow wireless access anywhere in the world

operates only in the 5GHz similar to 802.11ac

operates in both the 2.4GHz and 5GHz radios bands

is the first WLAN standard to no longer use electromagnetic signals to transmit data

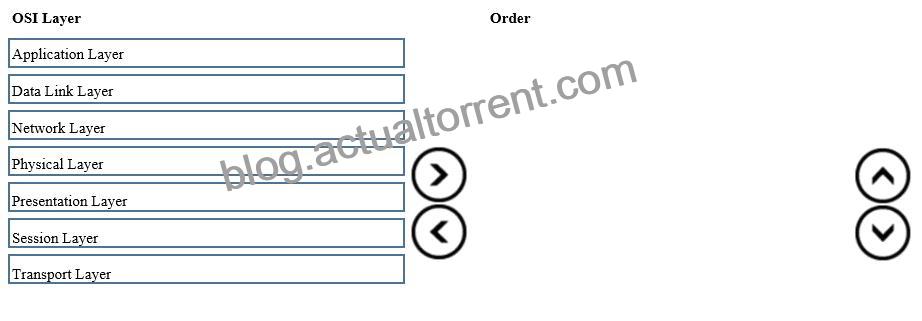

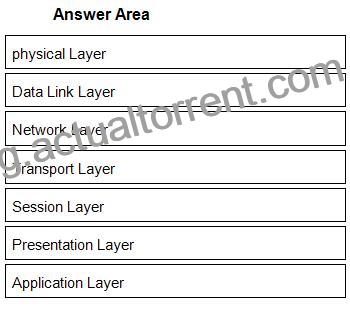

NO.33 Place the OSI Layers in the correct order. Arrange them from least to greatest, starting with Layer 1 on the top, and progressing to Layer 7 on the bottom.

NO.34 Which command will suppress LLDP messages from egressing on a given port while still allowing LLDP to be enabled on the switch?

switch(config-if)# no lldp interface (port) transmit

switch(config-if)# no lldp transmit

switch(config-if)# no lldp receive

switch(config)# no lldp

NO.35 Which command can be used to find the serial number of an Aruba OS-CX switch?

The command inventory

The command version

The command show running-configuration

The command show system

NO.36 Which port or ports should be allowed through a firewall so that an AOS-CX switch can act as an SNMP Agent?

UDP 1812 and UDP 1813

UDP 161

TCP 443

UDP 162

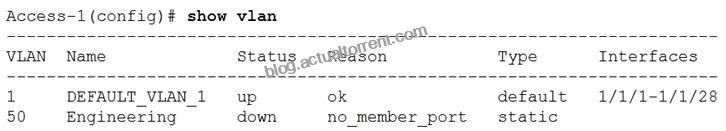

NO.37 Refer to the exhibit

What is true regarding VLAN 50 according to the diagram above?

VLAN 50 is part of a switched virtual interface (SVI) that was never routed causing it to be down.

Since VLAN 50 has not been assigned to any enabled physical port, the status is down.

VLAN 50 is assigned only to Trunk ports which is why no ports are listed under interfaces.

VLAN 50 was never added to the vlan-database and therefore is in a down state.

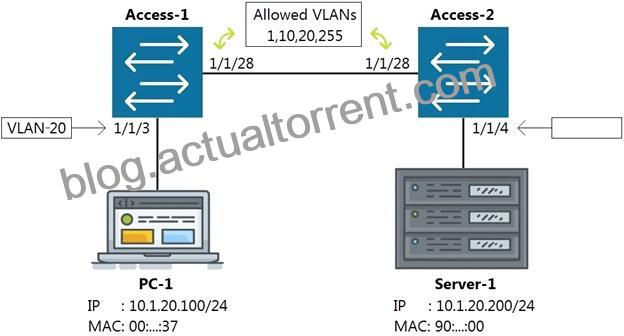

NO.38 Refer to the exhibit

Which command on Access-2 port 1/1/4 will enable connectivity between PC-1 and Server-1 without any routing enabled in the network?

Access-2 (config-if-1/1/4)# vlan access 1, 10, 20, 255

Access-2 (config-if-1/1/4)# vlan access 20

Access-2 (config-if-1/1/4)# vlan 20 untag 1/1/4

Access-2 (config-if-1/1/4)# vlan trunk allow 1, 10, 255

NO.39 Core(config)# user admin password
Core(config)# interface mgmt
Core(config-if-mgmt)# ip static 10.254.16.89/22
Core(config-if-mgmt)# default-gateway 10.254.19.129
Core(config)# ssh server vrf mgmt
Core(config)# https-server vrf mgmt
You are tasked with configuring the Core switch to be managed by NetEdit. Currently, the Core switch is at factory-default settings.
Which two steps are missing? (Choose two.)

Core(config)# https-server rest access-mode read-write

Core(config-if-mgmt)# no shutdown

Core(config-if-mgmt)# no tftp-server

Core(config-if-mgmt)# enable

Core(config)# https-server rest access-mode read-only

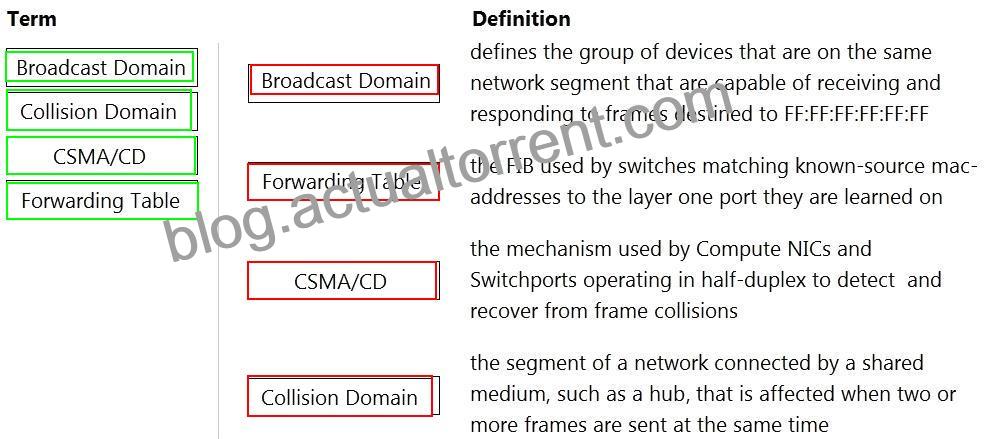

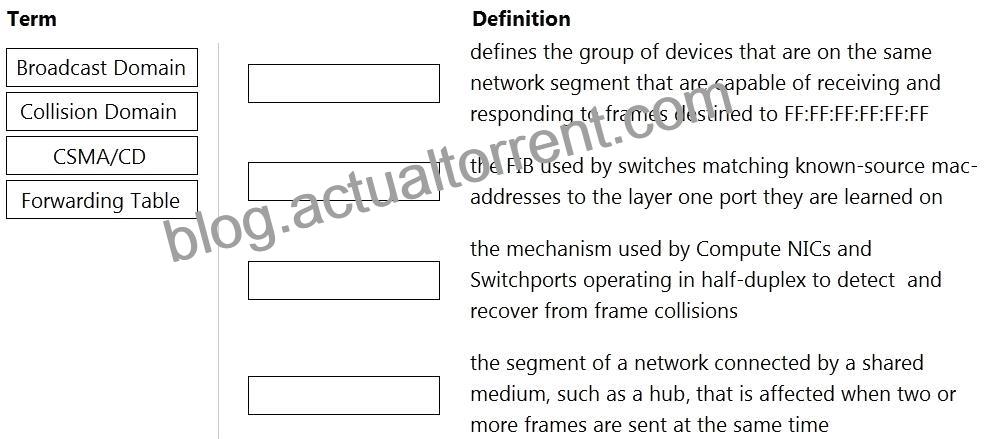

NO.40 Match the switching term to the correct definition.

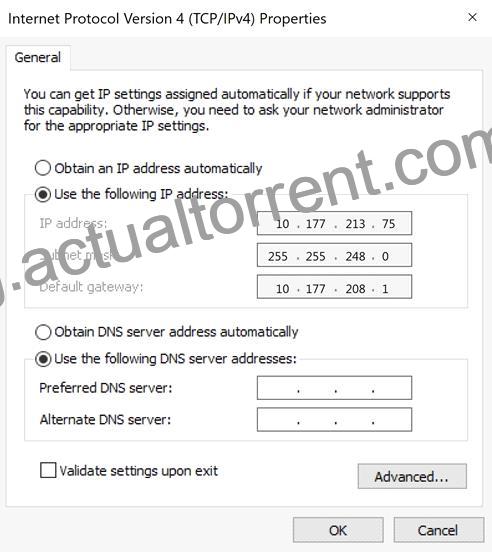

NO.41 Refer to the exhibit.

Using the static IP address configured above, what is the converted binary value of the third octet assigned to the local interface?

11010101

10110001

01001011

11111000

NO.42 With what other technology does Half Duplex communication closely match?

a pair of fiber optic strands allowing transmit on one and receive on the other at the same time

a mobile phone call

point-to-point connections between two switches allowing concurrent transmit and receive

CB radio using push-to-talk

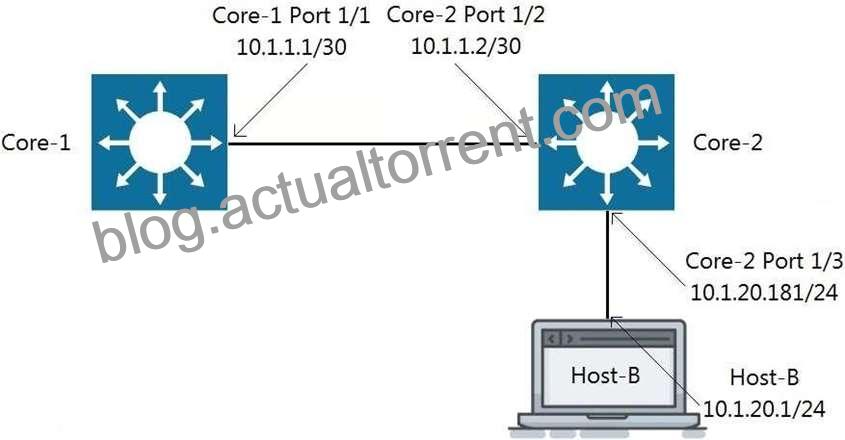

NO.43 Refer to the exhibit.

Traffic is failing between Core-1 and Host-B. IP addressing has correctly been applied, and all interfaces are attached to the vrf GREEN.
Which configuration will correct the issue?

Core-2(config)# ip route 0.0.0.0/0 10.1.1.1 vrf GREEN
Host-B: assign the default-gateway address 10.1.20.181

Core-1(config)# ip route 10.1.20.0/24 10.1.1.2 vrf GREEN
Host-B: assign the default-gateway address 10.1.20.181

Core-1(config)# ip route 10.1.20.0/24 10.1.1.2 vrf GREEN
Host-B: assign the default-gateway address 10.1.20.1

Host-B: assign the default-gateway address 10.1.20.181

NO.44 What is the login and password combination is used when first configuring an Aruba OS-CX switch from factory defaults?

Login admin and password admin.

Login admin and password field empty.

Login admin and password forgetme!

Login admin and password password.

NO.45 Click on the colored box that corresponds with the line that best represents Unicast traffic flow.

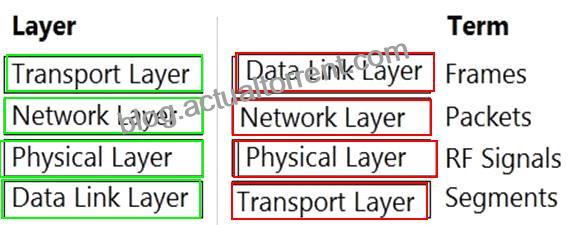

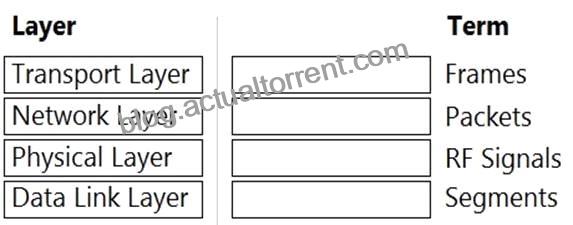

NO.46 Match the terms to the correct layer of the OSI model.

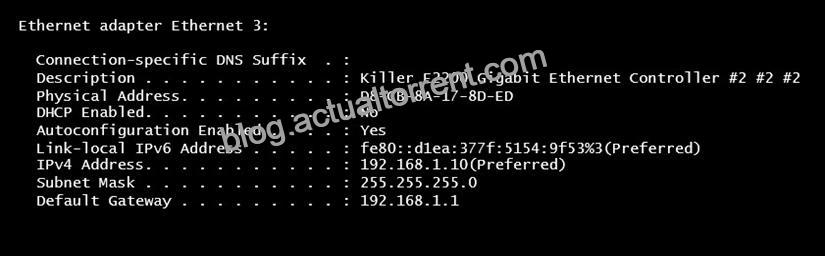

NO.47 Refer to the exhibit.

What is the correct binary conversion of the last two hexadecimal characters of the physical address?

1101 1000

1110 1101

1001 1111 0101 0011

1000 1101 1110 1101

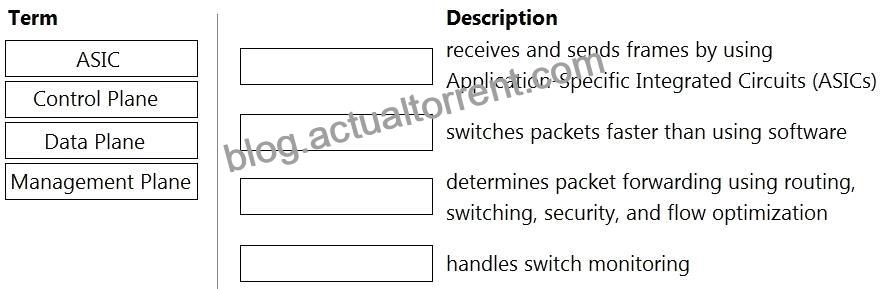

NO.48 Match each description to the correct term.

NO.49 What is true about VSX? (Choose two.)

VSX is ideal for Campus access layer deployments where ease of deployment is needed.

VSX allows upgrading members with near zero downtime or loss of packets.

VSX is available on all Aruba OS-CX switches except the 6300F model.

VSX is implemented on static port switches. VSX-plus needed to stack chassis together.

VSX run separate control planes to reduce latency and improve performance.

NO.50 Refer to the exhibit.

The above command was applied to an Aruba AOS-CX 6300M 24-port switch with 4-port SFP56 uplinks. All ports are set as access switchports.
Which ports carry VLAN 1 traffic?

1/1/8, 1/1/10, 1/1/5-1/1/24

1/1/1-1/1/28

1/1/1-1/1/24

1/1/8-1/1/10, 1/1/5-1/1/28

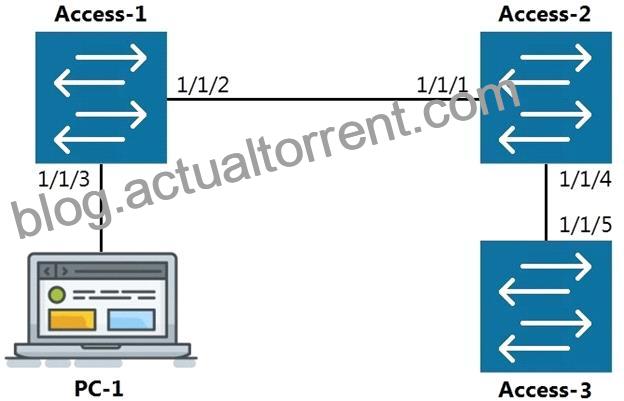

NO.51 Refer to the exhibit.

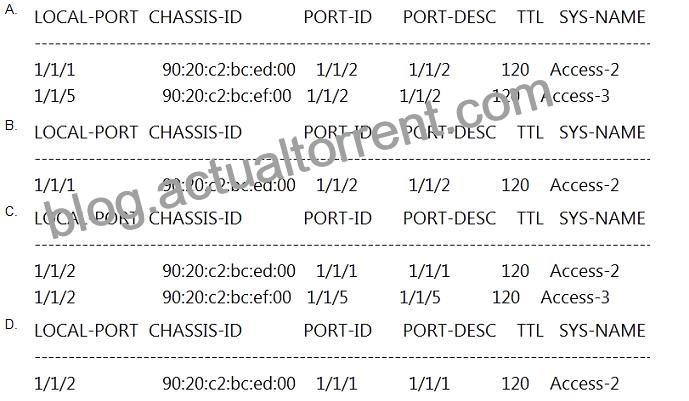

The command show LLDP neighbor-info gets typed into Access-1. All switches are Aruba OS-CX switches. What is the output of this command?

Option A

Option B

Option C

Option D

NO.52 Which two options are the Layer 2 protocols? (Choose two.)

802.1Q

IPSec

STP

RIP

802.11af
